DJ45X
SKU:
Enquire about this Product
To get more information about this product range, please submit your email and we'll get back to you
Description
Description

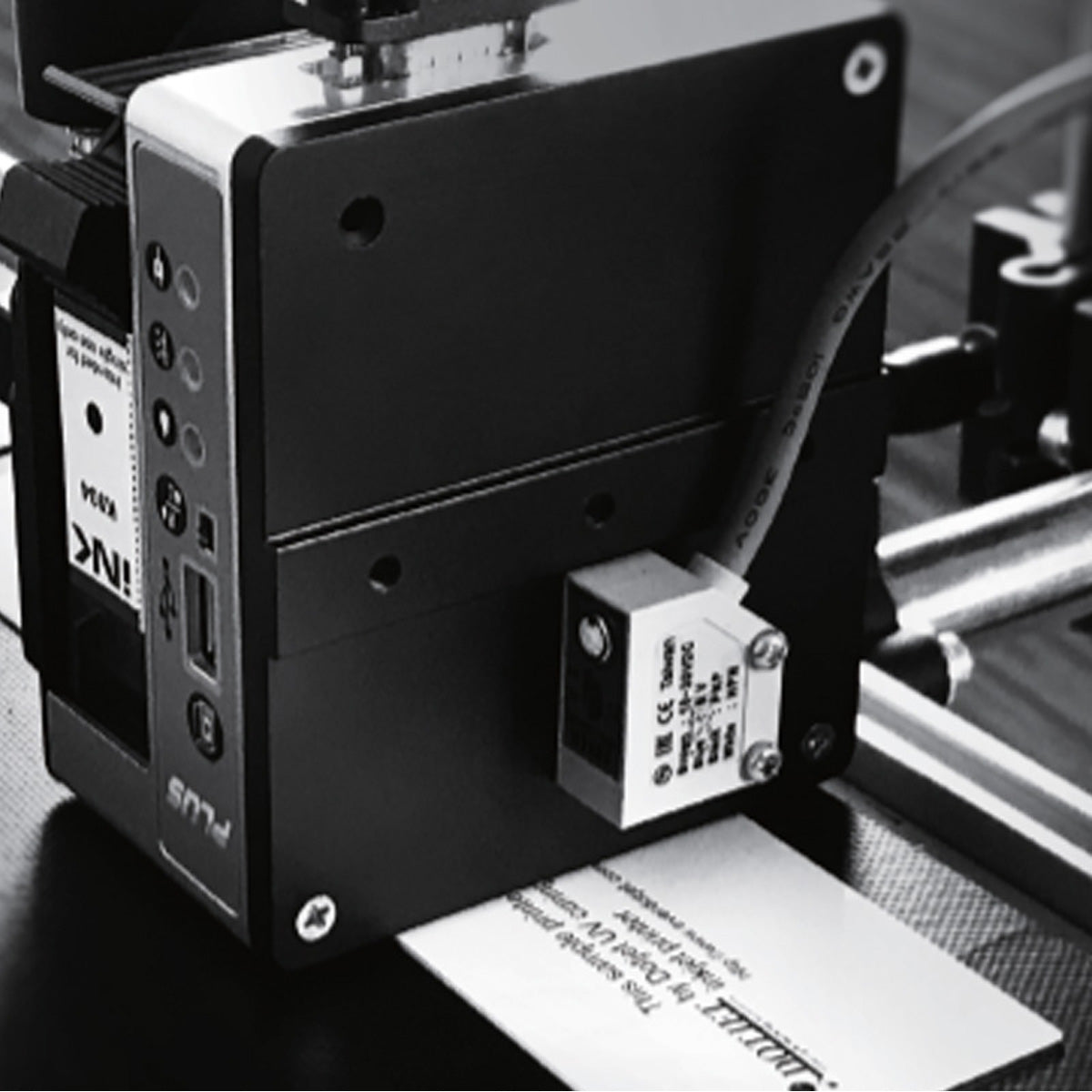

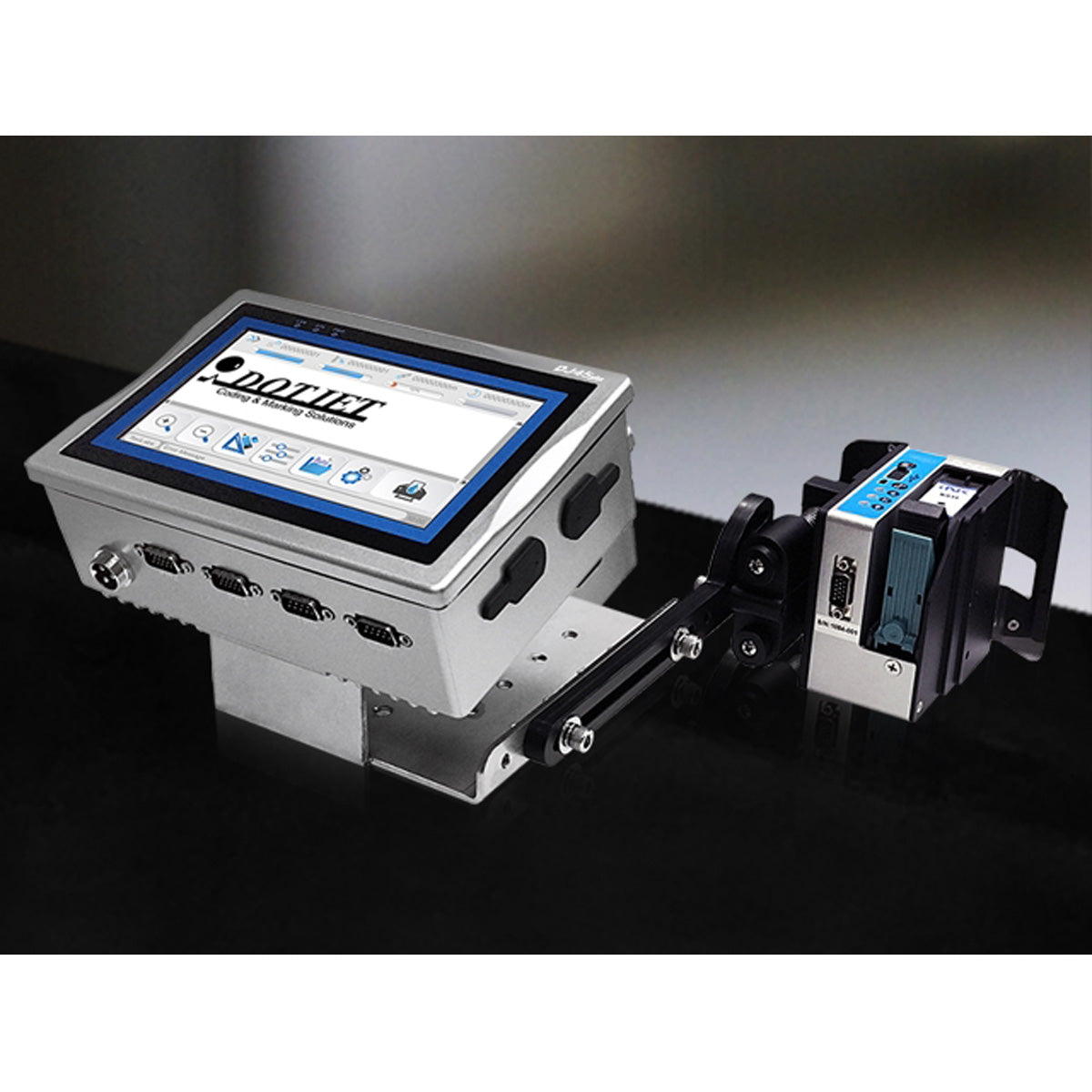

The DJ 45X offers a powerful digital alternative to traditional valvejet and CIJ printers, delivering enhanced flexibility and efficiency. Featuring dual printhead control and full GS1 barcode compliance, it ensures high-quality, reliable coding that meets industry standards—making it an ideal solution for modern production lines seeking performance and precision.
| Model | DJ45X |
| Technology | Hp TIJ2.5 |
| Power requirement | AC110 – 220V, 50/60HZ |
| Display | 7” colour LCD with LED backlight |
| Operating temperature | 5 ͦ C – 45 ͦ C (41 ͦ F – 112 ͦ F) |
| Controller operating system | Linux |
| Message storage | Up to 999 messages |
| Print head controlled ability | Two hp TIJ2.5 print heads |
| Print line | Multiple depends on character size |
| Print height | Selectable font size from 1mm to 12.7mm |
| Print speed | 60m/min (water ink) 90m/min (solvent ink) |
| Max. print length | 1m |
| Print resolution | Max. 600dpi x 600dpi / Regular 300dpi x 300dpi |
| Ink throw distance | Recommended 6mm |
| LED indicators | Ink low, print on/off |
| Print capability | Alphanumeric, logos, date/time, shift code, serial number, lot/box number, 2D code, 27 languages characters print |
| User interface | WYSIWYG. Multiple languages available ( some may need translation) |
| Print head data line | Standard 75cm, maximum 200cm |
| Weight | Controller 820g (excludes bracket) Print head 380g (excludes cartridge and bracket) |
| Dimensions (L/W/H) | Controller: 205x140x68mm / 8.1×5.5×2.7inch Print head: 130x115x94mm / 5.1×4.5×3.7inch |
| Optional | Encoder, bulk ink supply, external low ink alarm |
