DJ G4



Description

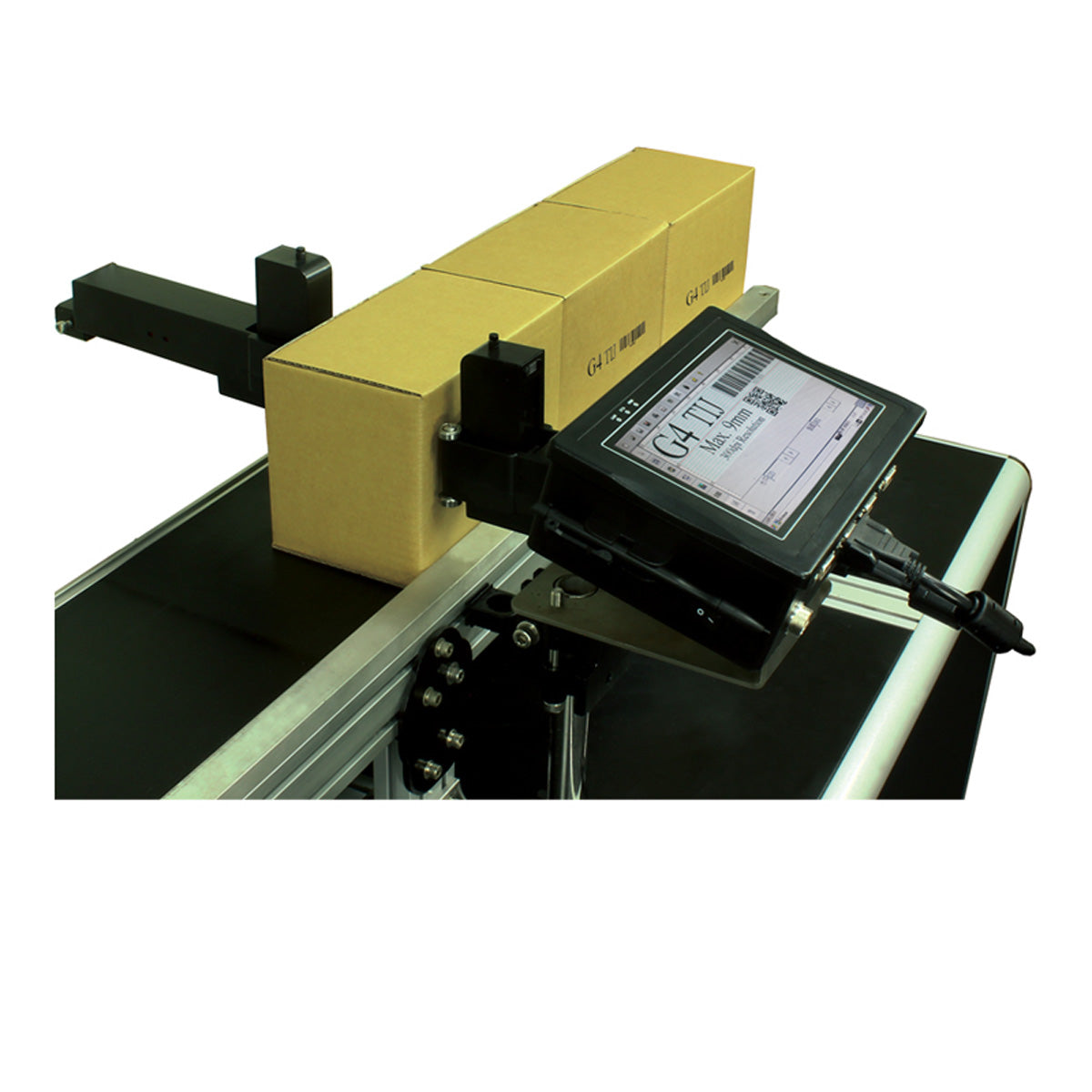

Dotjet’s G4 is a high-performance inkjet printer built on a robust WinCE embedded system, featuring a 7″ LCD touchscreen for intuitive operation and efficient data entry. Capable of printing up to three lines of variable data—including text, date/time codes, serial numbers, barcodes, logos, and external data—the G4 delivers exceptional flexibility for a wide range of industrial applications.

With dual-head control, it is an ideal upgrade from traditional valve-jet printers, offering superior print reliability and streamlined setup. Dotjet’s innovative cartridge technology ensures consistently sharp print quality while significantly reducing operating costs—eliminating the need for expensive disposable cartridges.



Model DJ G4
Number of message Up to 1,000 messages under 32MB build in flash memory. Message length 1m or 104 x 3,328 pixel. Unlimited storage messages under external flash drive
Date / time 2 independent clocks for calendars, expiration date, Julian date, real time, real date with customized format
Counter Several counter sets with 9-digits per counter e.g. batch number, box-lot number, repeat counter, interval counter
Shift code Unlimited shift code defined by hour or minute
Barcode 1D (fixed and variable) 39, 93, 25, 128, EAN 8, EAN 13, EAN 14, EAN 128, UPC A, UPC E, ITF with variable data
Barcode 2D ( fixed and variable) QR-code, data matrix, PDF-417 with variable date
Repeat print Non-stop print repeating including increment/decrement counter
External device Ability to connect external device such as weight scale, computer, scanner etc
Connectivity External data transmitted: RS232
Print direction Left or right
Print head alignment Horizontal or vertical (down)
Throw distance 0.5 – 10mm between print head and printing surface
Indicator (LED) Printing message, power on
Ink cartridge 42ml, 104 nozzles, 300dpi print solution
Colour Black, blue, red all base on water for any porous substrates
No. of print head Max. 2 print heads
Ink consumption (characters/ink cartridge) 16,000,000 characters, font 20 (1.7mm height / 5 lines)
8,690,000 characters, font 26, (2.1mm height / 4 lines)
5,920,000 characters, font 32 (2.6mm height / 3 lines)
2,030,000 characters, font 52 (4.2mm height / 2 lines)
1,170,000 characters, font 72 (5.8mm height / 1 line)
660,000 characters, font 96 (8.0mm height / 1 line)
550,000 characters, font 104 (8.6mm height / 1 line)
