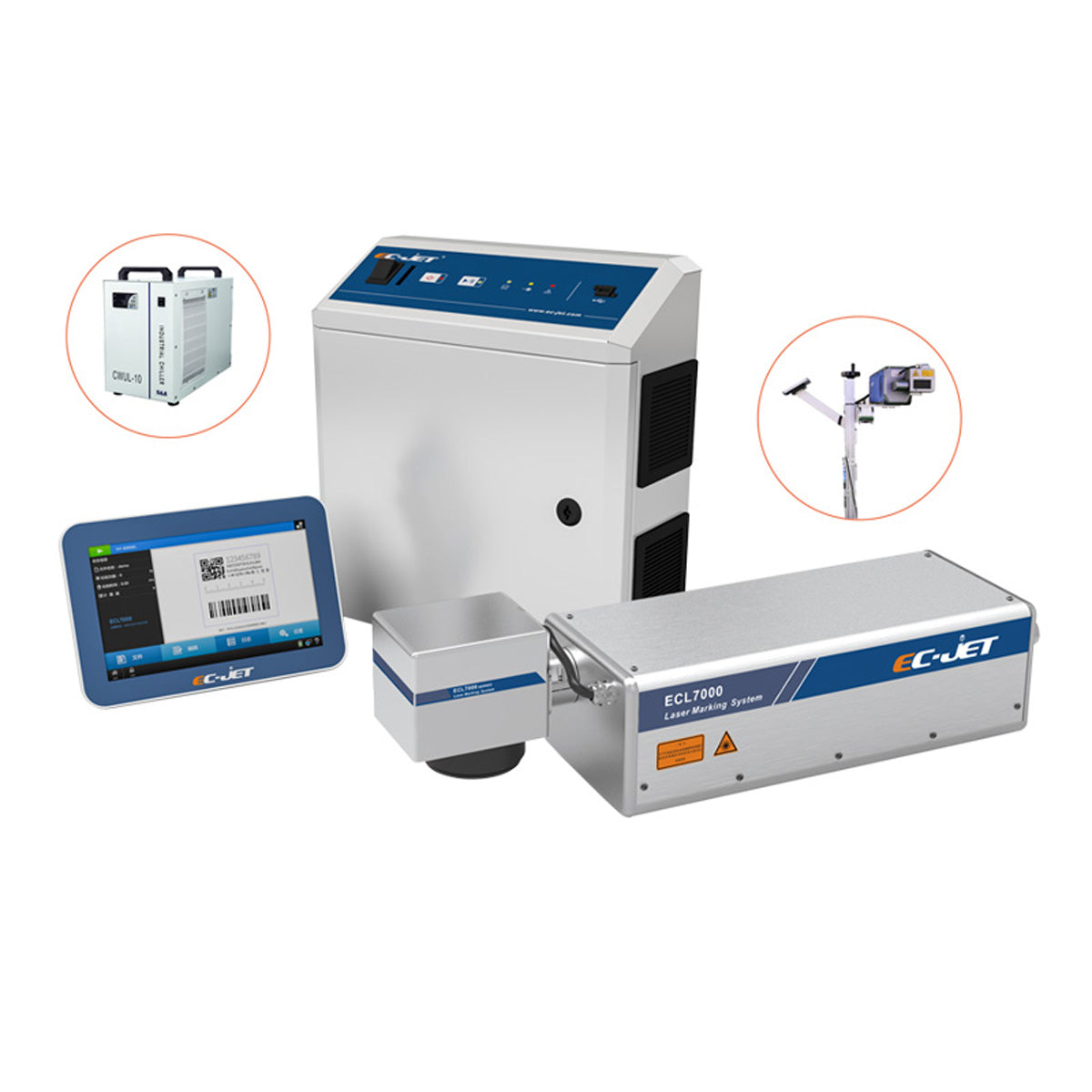

UV Laser

UV lasers deliver all the benefits of permanent marking found in conventional laser technologies, with the added advantage of reduced operating costs thanks to lower power consumption.

Ideally suited for the pharmaceutical and cosmetics industries, these UV lasers excel at producing high-contrast, permanent codes on materials such as HDPE, LDPE, and ABS bottles. Their cold-marking capabilities make them particularly well-suited for sensitive production environments, where heat exposure must be minimized.

Model	ECL7203
Laser type	UV Laser
Laser power	3W
Cooling system	Water cooling
Coding line	Within the marking area
Character height	0.66 – maximum marking range
Barcode	Variety of 1D and 2D barcode types available
Graphics format	BMP/DXF/HPG/JPEG/PLT and many other graphic formats
Text type	Fixed text, serial number, date, counter, shift code, database random code
Marking area	70*70mm – 175*175mm optional
Operation interface	10.1 inches high precision industrial touch screen
Operation system	EC-Jet “SEQ” operation system
Standard interface	Shaft encoder interface, product detector interface, external alarm interface, USB, Ethernet interface
Appearance and material	Industrial – grade stainless street and aluminum cabinet
Protection level	IP54
Power supply	110V – 240VAC, 50/60Hz, 600W
Dimensions	Laser head: 580mm * 228mm * 176mm
	Controller: 564mm * 500mm * 296mm
	Handheld touch screen: 272mm * 218mm * 26mm
